Semi tanker trailer is mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products).
According to different uses and use environments, it has a variety of refueling or oil transportation functions, including oil absorption, pumping oil, and various oil packaging and distribution functions.
Normal tanker maintenance can maintain the performance of the vehicle and prolong its service life.
Semi Tanker Trailer | Semi Fuel Tankers for Sale | Semi Trailer Fuel Tanker
Semi Tanker Trailer | Semi Fuel Tankers for Sale | Semi Trailer Fuel Tanker
Semi Tanker Trailer | Semi Fuel Tankers for Sale | Semi Trailer Fuel Tanker
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 25-60m³
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in kingpin
Suspension: Mechanical suspension /German or America type /Air Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Semi tanker trailer is made of Q345 high-strength steel, the thickness of the tank body is 5 mm,the front and back shell is 6 mm thick,which makes the tank body very strong.

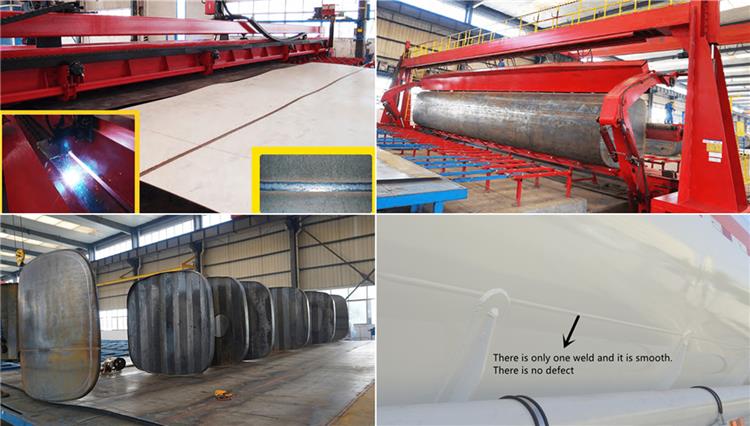

Semi fuel tank for sale tank uses the most advanced welding technology. Through single-sided welding and double-sided forming welding, the welding seam is stronger and smoother, there is no welding defect, and there will never be a phenomenon of open welding. The tank can be used for more than ten years.
Semi fuel tanks for sale tank bodies adopt longitudinal welding technology, which reduces the number of welding seams of the tank body and improves the overall firmness of the tank body by more than 20%.
Semi fuel tanks for sale also uses the biggest fuel tank-producing machine in Asia. The most advanced machine makes the tank body one-time molding, which ensures the firmness of the tank body to the greatest extent.
Semi trailer fuel tanker is equipped with an anti-wave board with a thickness of 5 mm, which can greatly reduce the impact of the liquid inside on the trailer during transportation and greatly improve the safety of the trailer.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
