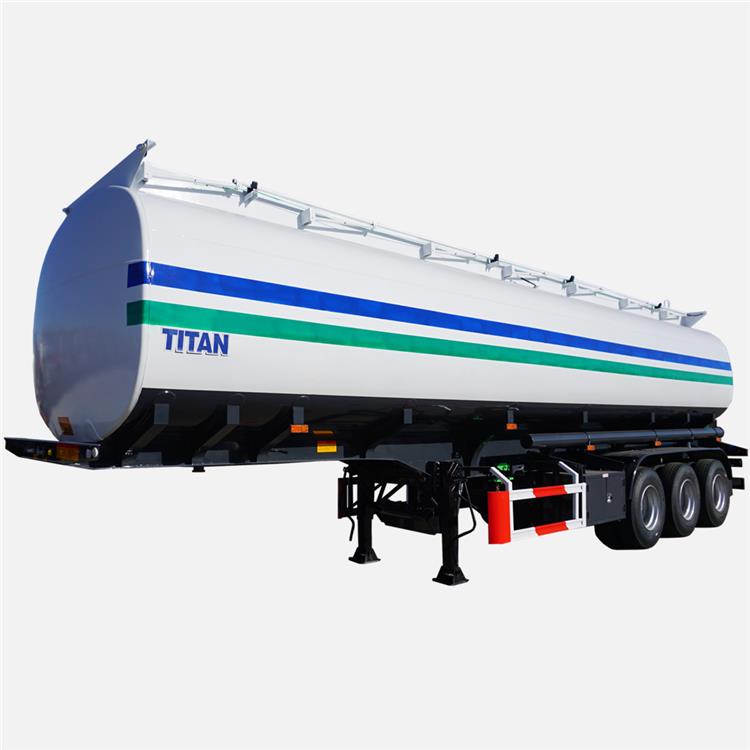

45,000 liters fuel tanker trailer can effectively improve transportation efficiency. Reduce transportation costs and save fuel consumption. It is mainly composed of tank body, frame, traction device, support device, electrical system, walking system, protective device, accessories, etc.
The 45,000 liters fuel tanker trailer tank body is made of 4mm or 6mm high-quality carbon steel produced by iron and steel companies according to national standards. It can also produce heating and thermal insulation series tanks.
45,000 Liters Fuel Tanker Trailer for Sale - TITAN
45,000 Liters Fuel Tanker Trailer for Sale - TITAN
45,000 Liters Fuel Tanker Trailer for Sale - TITAN
45000L Fuel Tank Trailer Display Video
Tare Weight (semi trailer): About 8000-12800kg
Total volume: 45,000 liters
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Compartments: 4 Compartsments

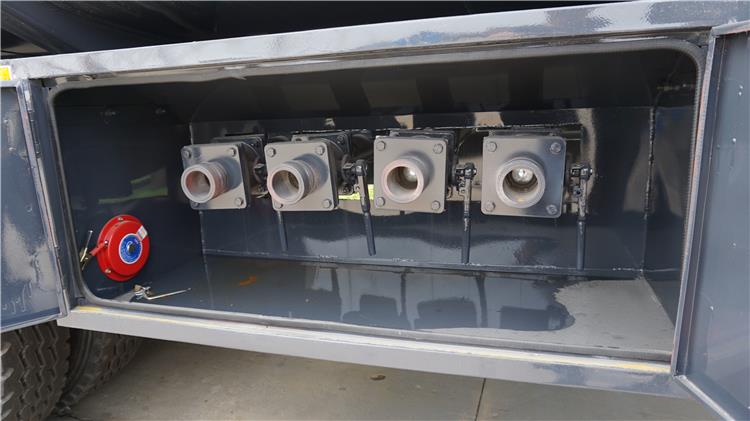

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension /Germany or America type /Air Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

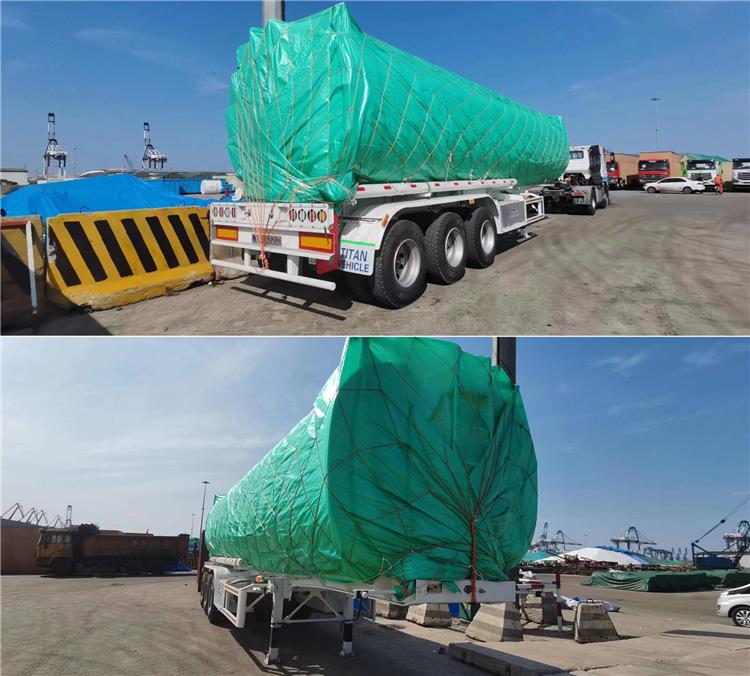

TITAN will spray a thick layer of wax for the bulk transportation of the fuel tanker trailer and wrap it with a rain cloth to reduce the corrosion of seawater to the body during transportation. Many customers agree and praise this practice very much.

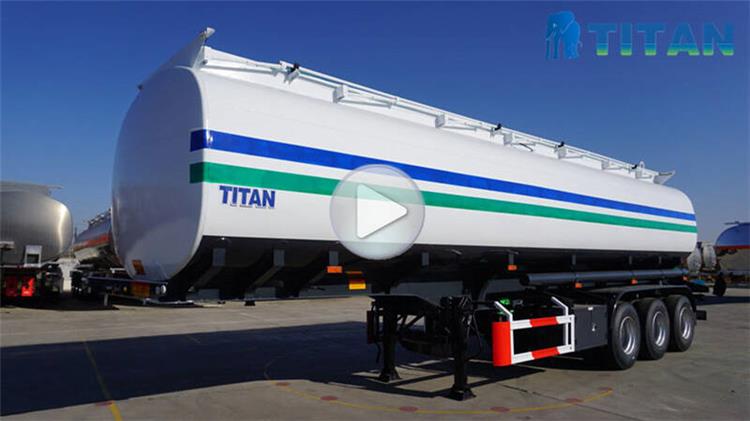

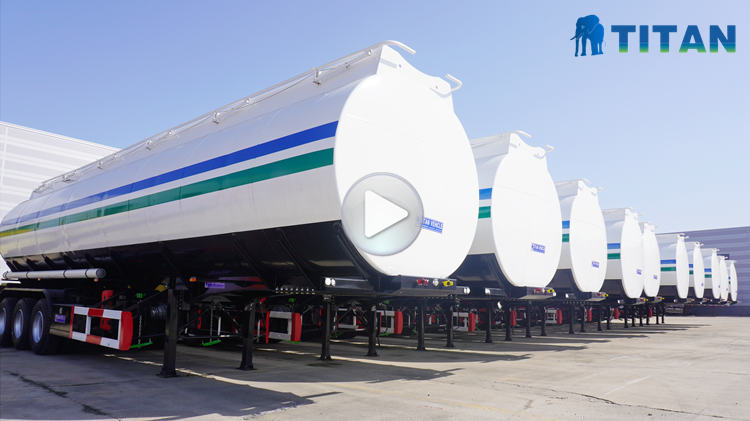

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
