The volume of Aluminum alloy fuel tanker trailer can be customized to reach 30000-90000 litres. This anti-twist, shock and bump resistance improves transport safety. Aluminum tanker trailer is used to transport different liquids like fuel, gasoline, water, palm oil, bitumen etc.

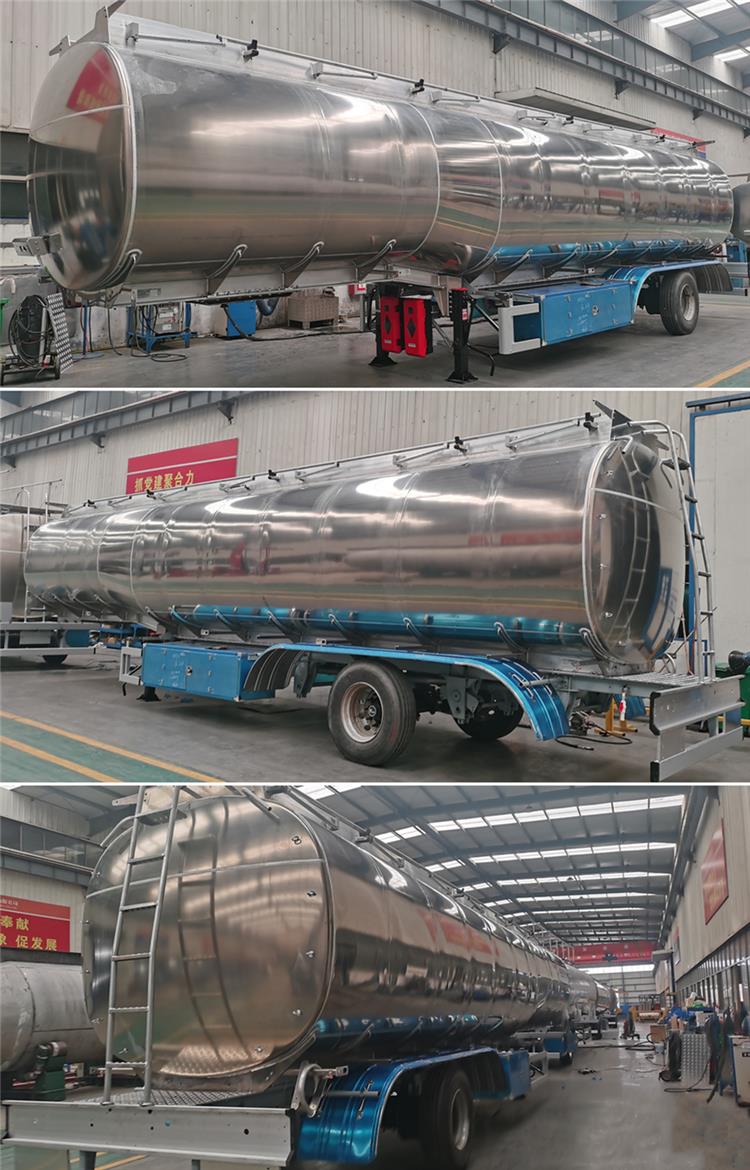

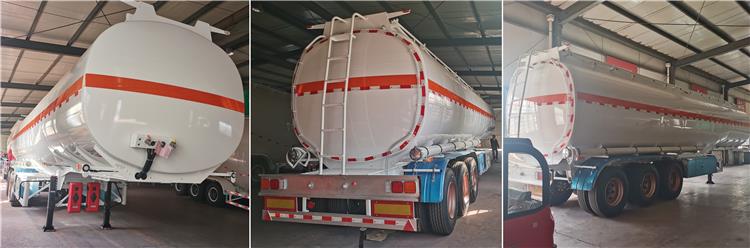

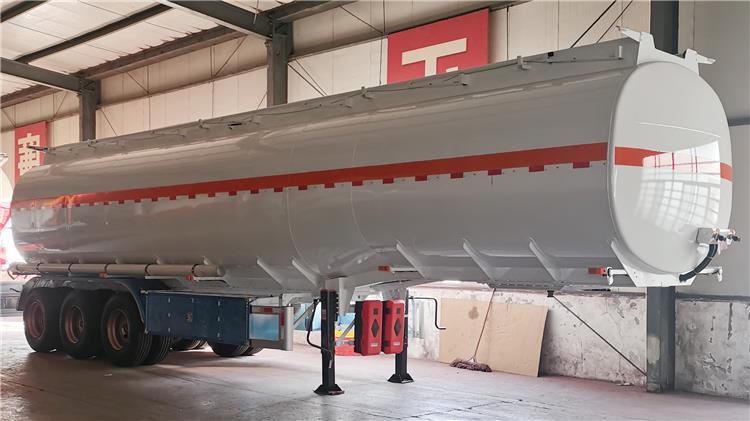

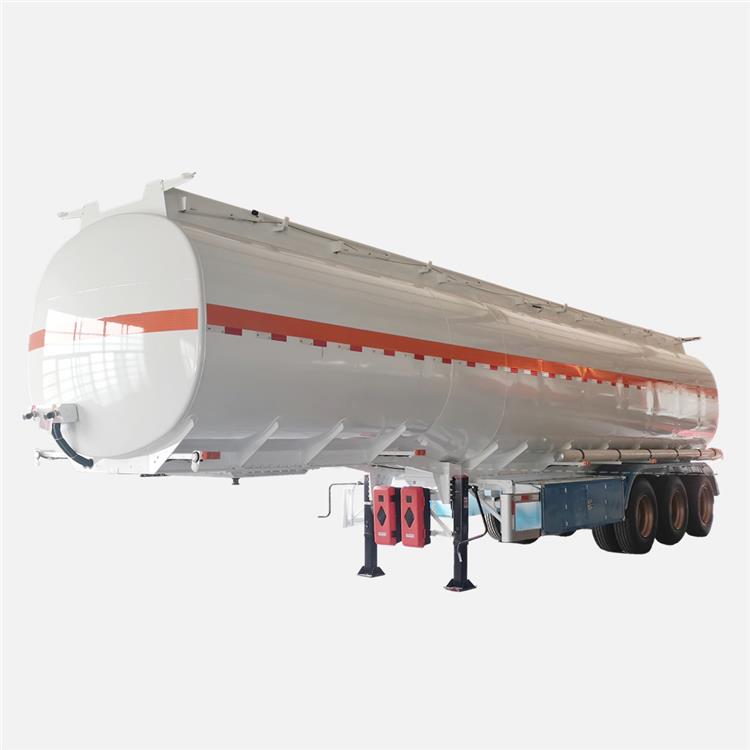

Aluminum Alloy Fuel Tanker Trailer Tanker for Lube Oil & Petroleum Products
Aluminum Alloy Fuel Tanker Trailer Tanker for Lube Oil & Petroleum Products
Aluminum Alloy Fuel Tanker Trailer Tanker for Lube Oil & Petroleum Products
Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 60000 liters
Tank Body Material: 5mm
End plate: 5mm
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Aluminum alloy fuel tanker trailer are equipped with European-style systems as standard, including oil and gas recovery systems, anti-overflow systems, and anti-static systems.
TITAN especially uses a high-strength explosion-proof manhole cover. Even if the trailer collides or rolls over, the manhole cover will never be opened, which greatly improves the safety of the aluminum alloy fuel tanker trailer.
The aluminum alloy fuel tanker trailer comes standard with API European-style discharge valve and is equipped with a gas recovery valve.
The aluminum alloy fuel tanker trailer adopts heavy duty mechanical suspension, the thickness of the suspension is 8 mm and the diameter of the kingpin is 70 mm. This heavy-duty mechanical suspension can not only improve the stability of the trailer but also reduce tire wear and improve the life of the aluminum alloy fuel tanker trailer.
The aluminum alloy fuel tanker trailer is equipped with 12R22.5 tires. Of course, aluminum alloy fuel tanker trailer also provide other kinds of tires.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
