Aluminum semi trailers for sale are mainly used to transport edible oil, which are generally suitable for long-distance transportation. Aluminum semi trailers for sale with insulation will ensure that the cooking oil does not solidify.
The Aluminum semi trailers for sale have a capacity of 30000-60000 liters, which is generally used for long-distance transportation, transporting liquid substances to all over the world, so as to realize the reasonable distribution and use of resources.

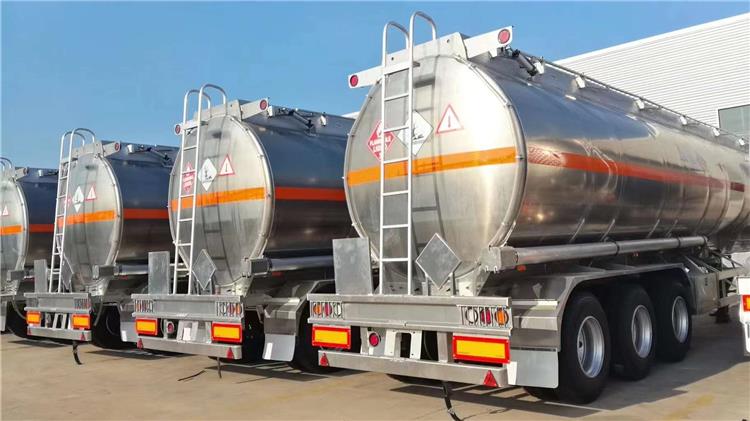

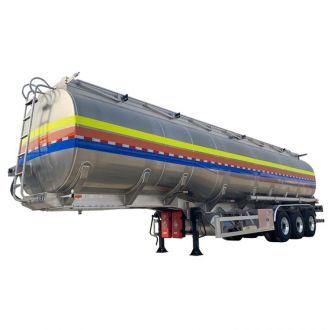

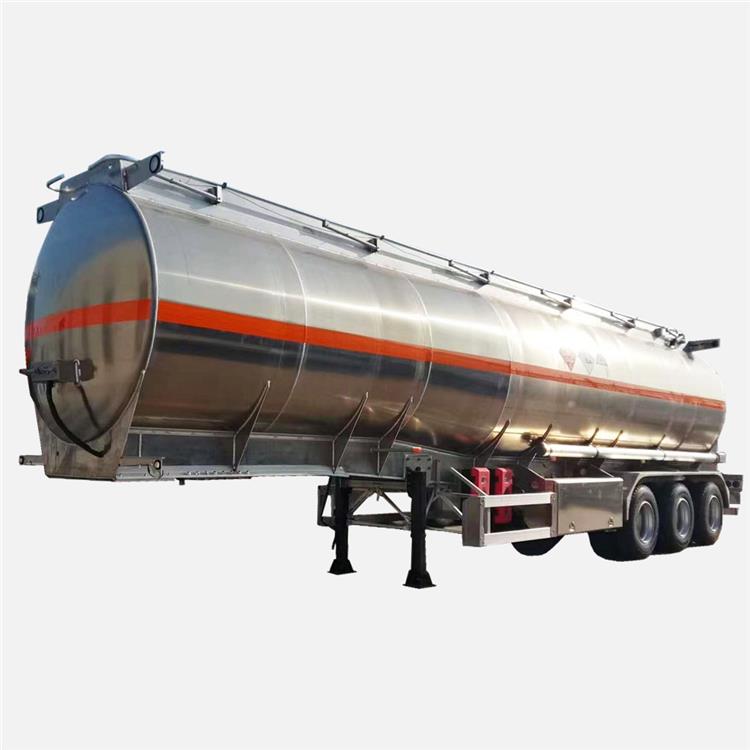

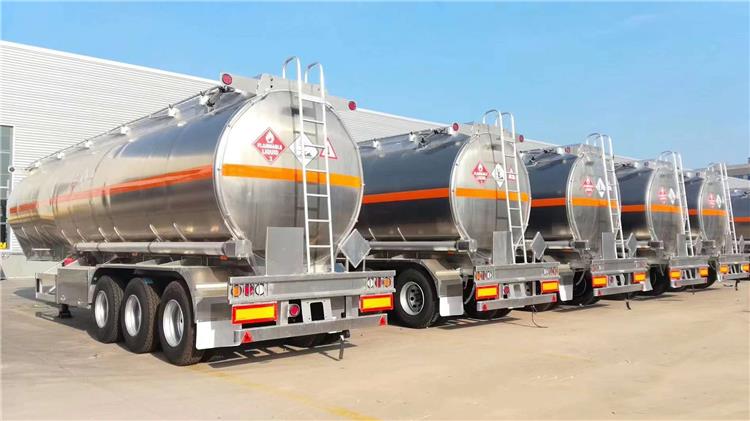

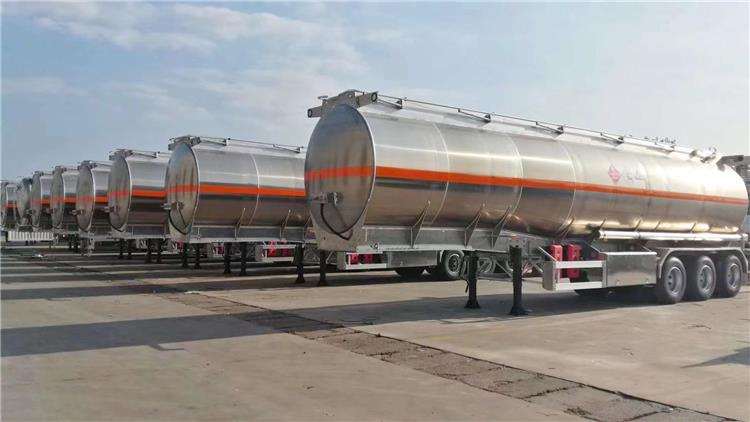

40,000 Ltrs Aluminum Semi Trailers for Sale | Aluminum Fuel Tank Trailer
40,000 Ltrs Aluminum Semi Trailers for Sale | Aluminum Fuel Tank Trailer
40,000 Ltrs Aluminum Semi Trailers for Sale | Aluminum Fuel Tank Trailer
Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank Body Material: 5mm
End plate: 5mm

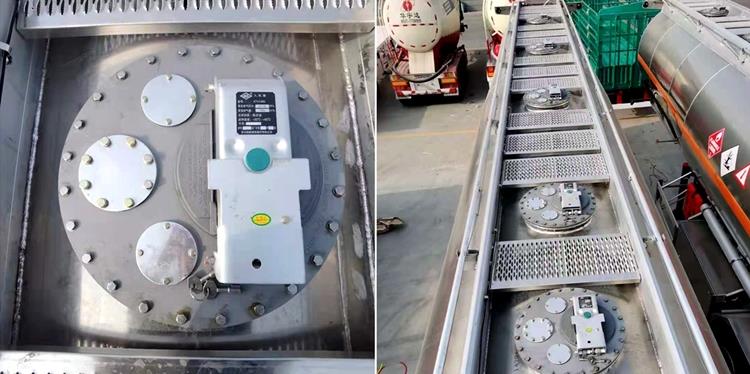

Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 5 Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Through the technical improvement of Aluminum semi trailers for sale, Titan has developed a container transportation plan of 40,000 liters aluminum semi trailers for sale.

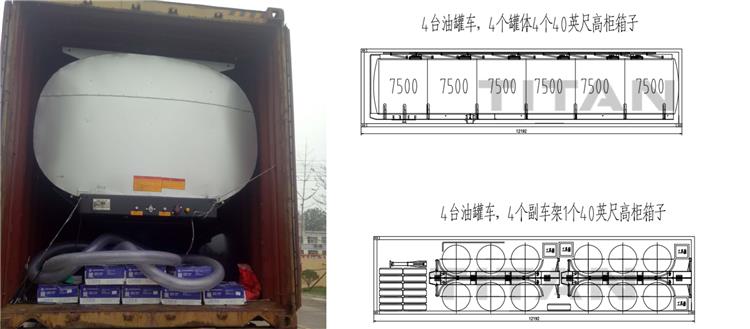

1-5 warehouses can be transported in 40ft high container containers. When the 40000 liters aluminum semi trailers for sale have more than 6 warehouses or the tanker volume exceeds 40 cubic meters, a separate cabinet is required to install axles, leaf springs and other accessories due to the larger tank body.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
