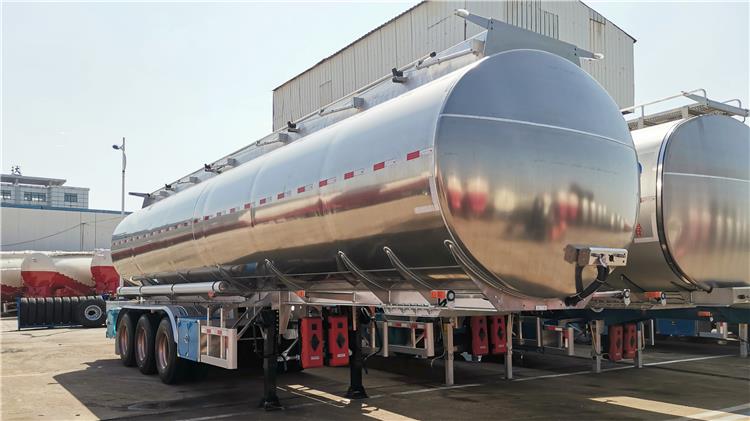

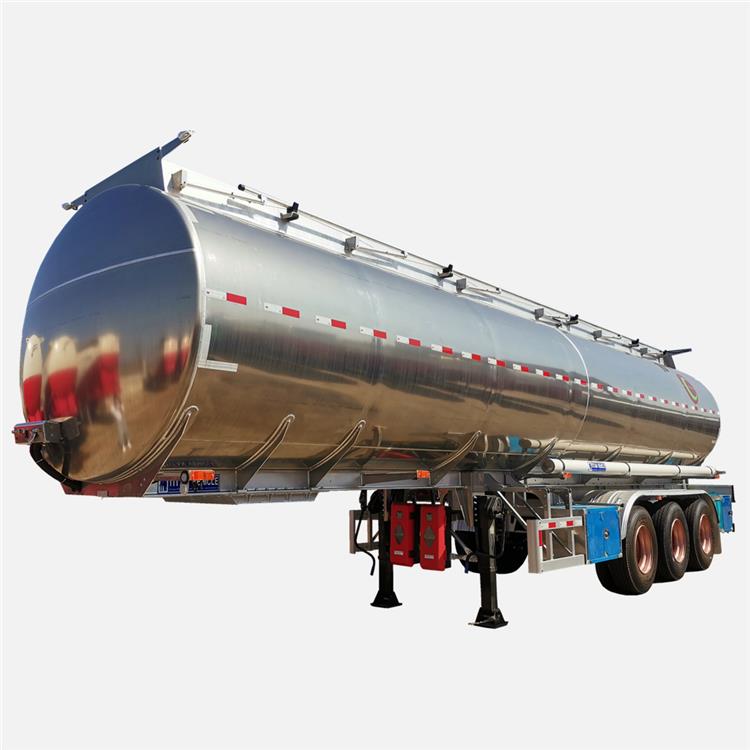

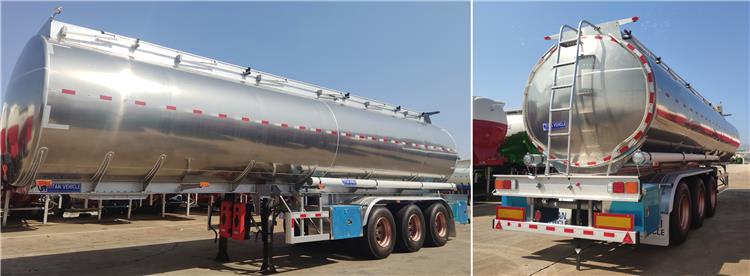

Tri axle aluminum tanker trailer for sale is used to transport different liquids like fuel, gasoline, water, palm oil etc.
Tri axle aluminum tanker trailer for sal adopts advanced design concept. Considering the road conditions, manufactures the most durable tankers, especially for the African market. This resistance to twisting, shock and bumps makes your transport safe and beneficial.
Tri Axle Aluminum Tanker Trailer for Sale Price In Costa Rica
Tri Axle Aluminum Tanker Trailer for Sale Price In Costa Rica
Tri Axle Aluminum Tanker Trailer for Sale Price In Costa Rica

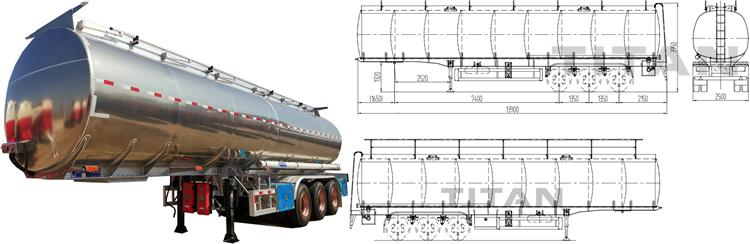

Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank Body Material: 5mm
End plate: 5mm
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

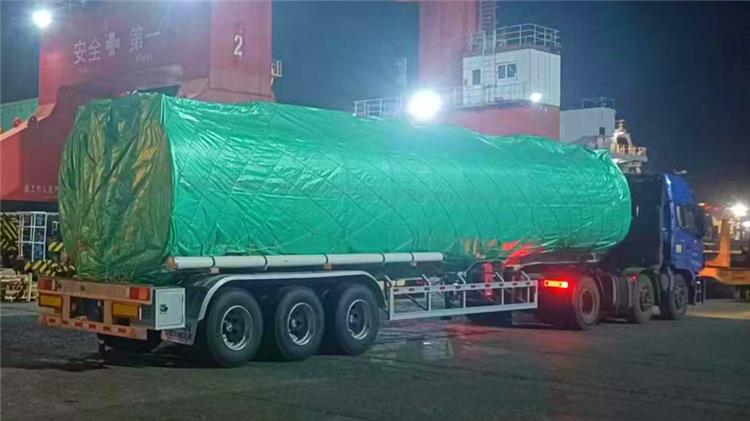

Tri axle aluminum tanker trailers for sale are usually shipped in bulk. Container shipping is also possible. After the production of the Aluminum tanker trailer is completed, a professional water injection test will be carried out for water leakage. After making sure there is no problem with the tanker trailer, we will follow up. We first spray the trailer with a thick layer of wax and then cover the body with a rain cloth to reduce seawater corrosion.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
