The 45,000 litres oil tanker semi trailer is normally used in oil transportation such as fuel, diesel, oil, lubricant oil, and other oil. The 45,000 litres oil tanker semi trailer shell is specially designed to bear the large air pressure.
The 45,000 litres oil tanker semi trailer design helps to shorten the discharge, and time and reduce the residual during unloading.
45,000 Litres Oil Tanker Semi Trailer | Price of Oil Tanker Truck Cost
45,000 Litres Oil Tanker Semi Trailer | Price of Oil Tanker Truck Cost
45,000 Litres Oil Tanker Semi Trailer | Price of Oil Tanker Truck Cost

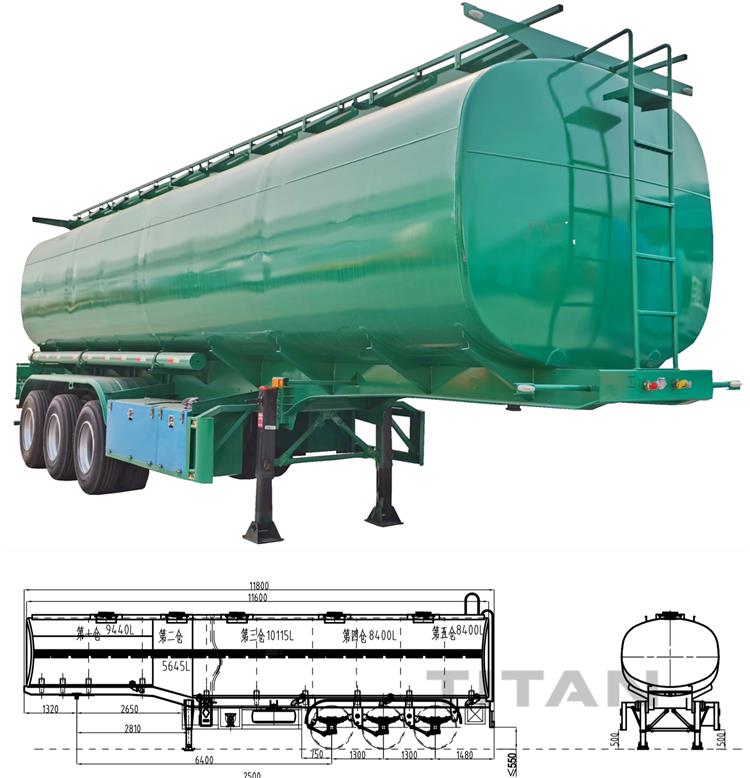

Oil Tanker Semi Trailer Dimension: 11800mm * 2550mm *3750mm
Tare Weight (semi trailer): About 8000-12800kg
Oil Tanker Semi Trailer Total volume(L): 45000 Liters
Tank Body Material: Q235 carbon steel
Oil Tanker Truck for Sale End plate: Q235 carbon steel
Oil Tanker Semi Trailer for Sale Manhole Cover: Carton steel
Discharging Valve: Diameter is 3 or 4 inch
Oil Tanker Semi Trailer for Sale Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Fuel Transport Trailers for Sale Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Fuel Transport Trailers for Sale Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Oil Tanker Semi Trailer Tire: 12.00R22.5
Oil Tanker Semi Trailer ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Oil Tanker Semi Trailer Accessories: One standard tool box
1. It’s our own factory, we have superior quality, reasonable price, advanced technology, fast delivery, and professional service from order to shipping.
2. Optional oil tanker truck cost sizes and styles are available.
3. Small order quantities can be accepted. MOQ is 1 set.
4. Exported to many countries, such as Southeast Asia, Africa and more than 50 countries.

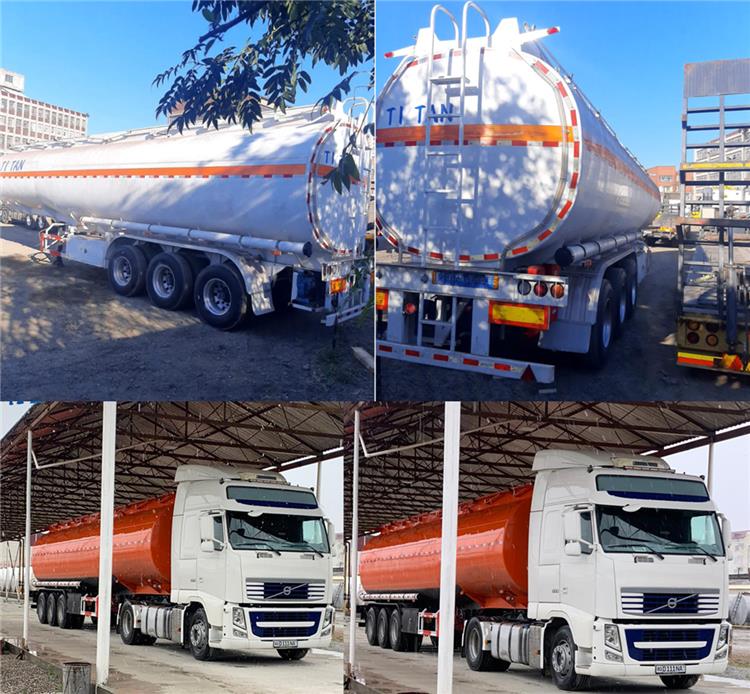

Many orders are introduced by repeat customers or bought again by repeat customers, and many customers have seen TITAN's oil tanker semi trailer locally, so this is why many customers choose us. Many customers have made high comments on TITAN's 45,000 litres oil tanker semi trailer. The following is also the user of feedback from different customers.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
