Stainless steel fuel tank trailers are generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid substances.
30,000 litre stainless steel tanker trailer, as a means of transporting dangerous goods, often has many large events. The 30,000 litre stainless steel tanker trailer has a capacity of 30,000-60,000 liters and is generally used for long-distance transportation. Considering the road conditions, we manufacture the most durable 30,000 litre stainless steel tanker trailer, especially for the African market.

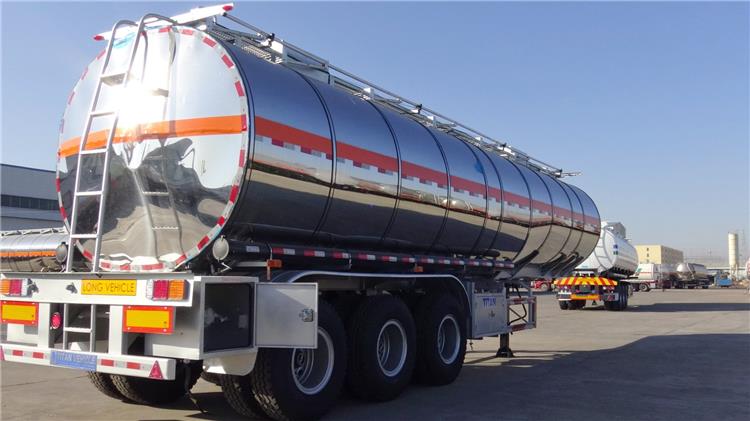

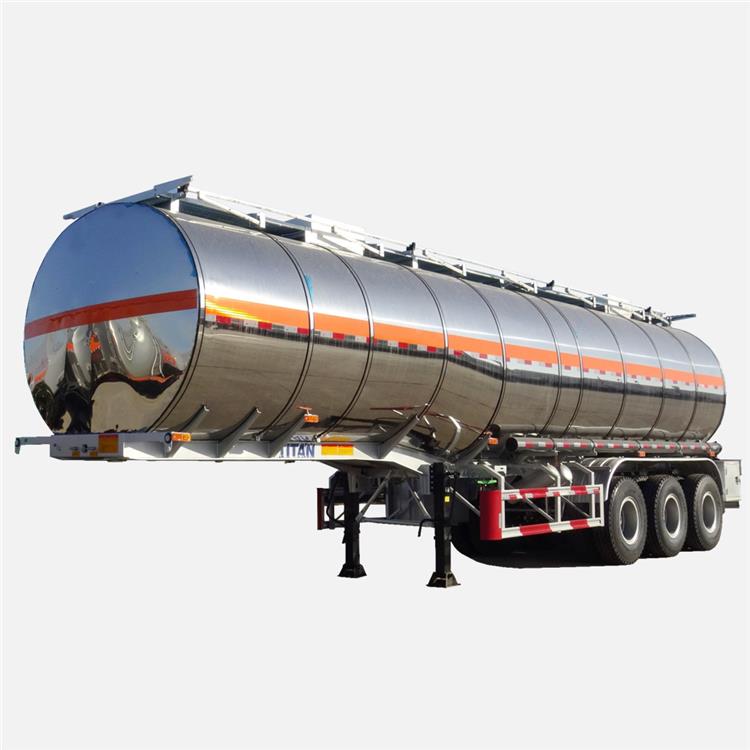

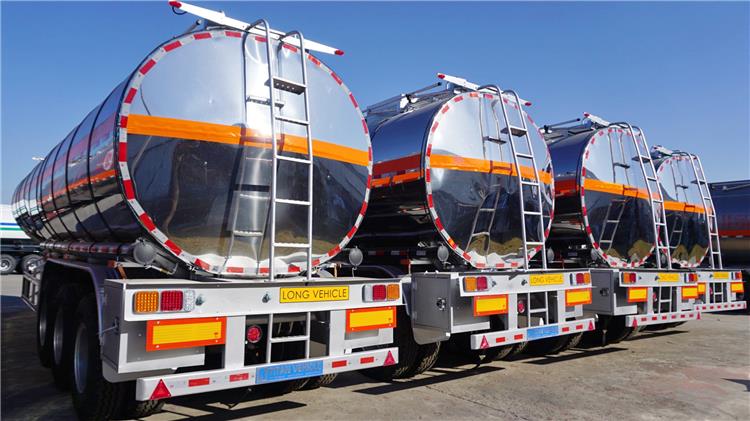

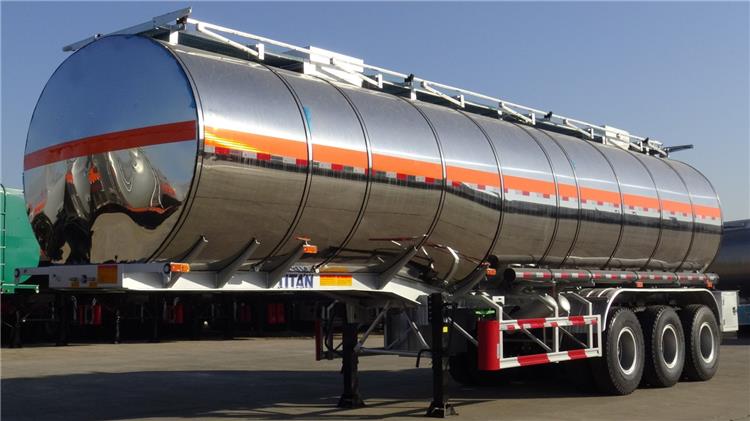

30,000 Litre Stainless Steel Tanker Trailer for Sale In Nigeria
30,000 Litre Stainless Steel Tanker Trailer for Sale In Nigeria
30,000 Litre Stainless Steel Tanker Trailer for Sale In Nigeria
Dimension: 10000mmx2500mm x3400mm (the exact size depends on the final design.)
Total volume: 30000 liters
Tank body material: Stainless Steel
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5 Chinese brand
Tire: 12.00R22.5 brand can be optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
The impurities and dirt in the new tank should be cleaned up before use. The impurities and dirt in the tank are discharged through the manhole cover or sewage outlet. Check whether the electrostatic mopping belt is mopping the floor. Check whether the ball valve of each loading and unloading port is closed.
30,000 litre stainless steel tanker trailer loading and unloading:
Charging: Open the charging port of the 30,000 litre stainless steel tanker trailer, insert the feeding hose into the 30,000 litre stainless steel tanker trailer or connect it to the charging valve to load. The loading capacity should be limited to the effective volume specified on the tank and the rated load quality of the vehicle, and overloading is not allowed. In addition, it is necessary to connect the ground wire to the static conductive connection board of the vehicle and be sure to connect it according to regulations.
Unloading: Connect the material conveying hose in the pipe box of the vehicle to the unloading port, and turn the handle of the ball valve on the unloading pipe to be parallel to the direction of the unloading pipe to unload the material.

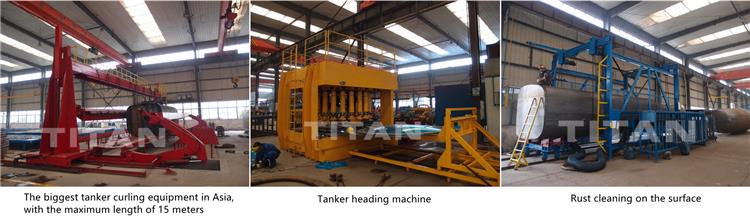

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
