TITAN fuel tanker trailer adopts an advanced design concept. Considering the road conditions, manufacturers the most durable tankers, especially for the African market. This resistance to twisting, shock and bumps makes your transport safe and beneficial.
TITAN fuel tanker trailer is used to transport fuel, gasoline, water, palm oil, bitumen and other different liquids.
45,000 Ltrs Fuel Tanker Trailer for Sale | Heavy 4 Compartments Fuel Tanker Semi Trailer
45,000 Ltrs Fuel Tanker Trailer for Sale | Heavy 4 Compartments Fuel Tanker Semi Trailer
45,000 Ltrs Fuel Tanker Trailer for Sale | Heavy 4 Compartments Fuel Tanker Semi Trailer
Tare Weight (semi trailer): About 8000-12800kg
Total volume: 45,000 liters
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Options
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension /Germany or America type /Air Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box

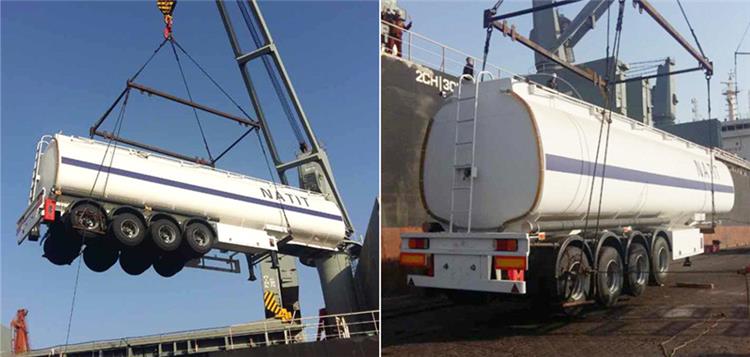

Shipping Terms: By bulk cargo, RORO or 40HQ containers
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
